LXT Technology

(Tool + Batteries + Charger)


CC01

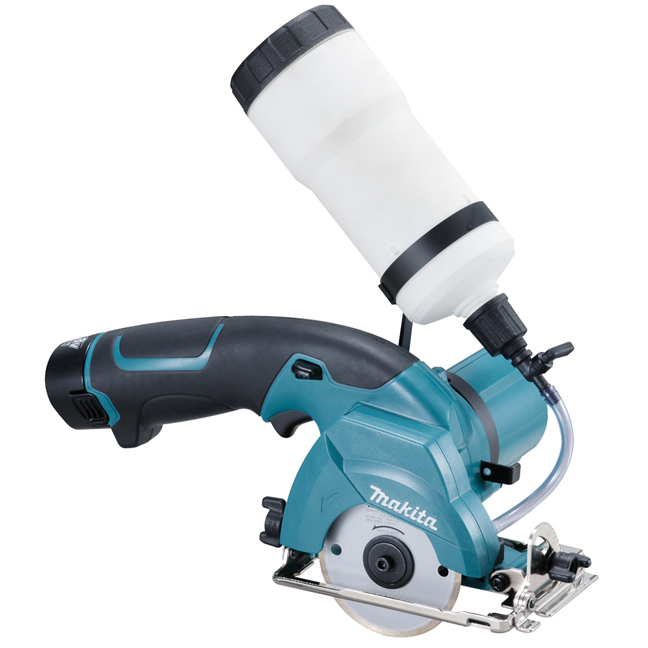

3-3/8" Cordless Glass & Tile Circular Saw

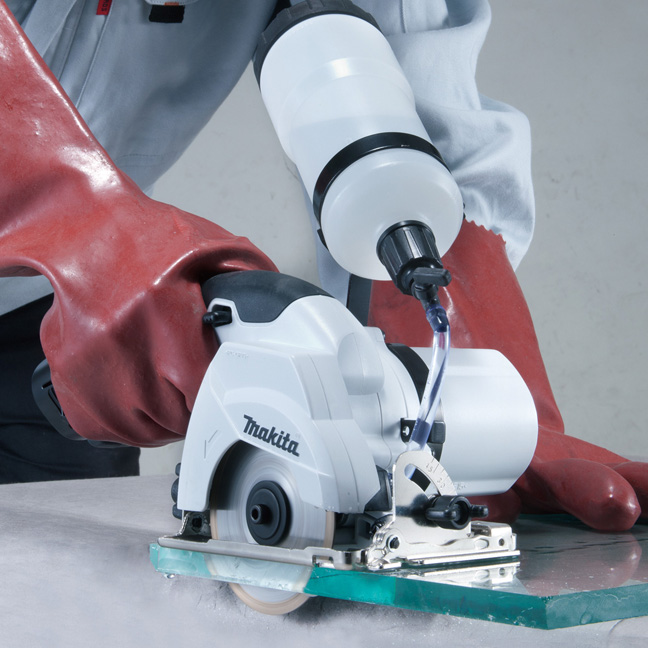

Specifically Designed For Cutting Glass and Ceramic Tile


LXT Technology
  • Battery Protection System shuts tool off when overloaded or when battery capacity is low
  • Left and Right Hand Lock-Off Lever for maximum operator safety
  • Water Supply Tank (500 ml) features large cap for quick and easy refilling
  • Nickel-Plated Base Plate prevents staining and corrosion
  • Bevel Capacity of 45o
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included:Two 12V Max(1.3Ah) Li-Ion Batteries BL1014 (195332-9), Charger (DC10WB), 3-3/8" Diamond Blade (A-95722), Hex Wrench 4 (783202-0)

  • Battery Protection System shuts tool off when overloaded or when battery capacity is low
  • Left and Right Hand Lock-Off Lever for maximum operator safety
  • Water Supply Tank (500 ml) features large cap for quick and easy refilling
  • Nickel-Plated Base Plate prevents staining and corrosion
  • Bevel Capacity of 45o
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included: Two 12V Max(1.3Ah) Li-Ion Batteries BL1014 (195332-9), Charger (DC10WB), 3-3/8" Diamond Blade (A-95722), Hex Wrench 4 (783202-0)

Shipping Dimensions (Length x Width x Height) & Weight : 15.55 In. X 8.39 In. X 7.68 In. Weight : 6 Lb.

Specifications

Battery Capacities 12V Max (1.3Ah) Li-Ion
Blade Diameter 3-3/8” (85 mm)
Arbor 9/16” (15 mm)
Maximum Cutting Depth:
  0° 1” (25.5 mm)
  45° 5/8” (16.5 mm)
No Load Speed 1,400 RPM
Vibration Level 3.0 m/s2
Noise Level 89 dB(A)
Overall Length 11-3/4” (300 mm)
Net Weight 3.7 lbs (1.7 kg)

User Manual: CC01, CC01Z - EN, FR, SP.pdf

Parts Breakdown: CC01, CC01Z - MAY2017.pdf
