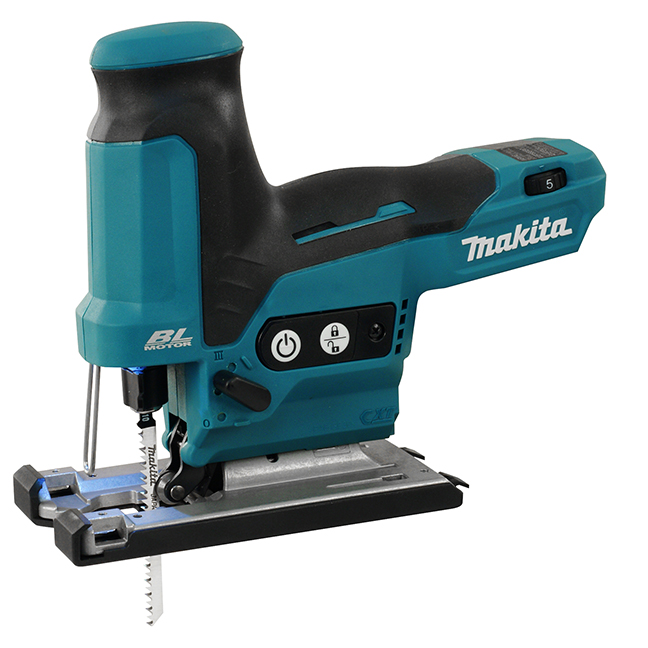

Cordless Jig Saw with Brushless Motor

Compact eXtreme Technology (CXT)

Brushless Motor Offers Same Power And Performance As AC Models

Barrel Handle Style

Tool-Less Blade Change, Soft Start, Soft No-Load, Variable Speed, Electric Brake

Brushless (BL) DC motor with high power to weight and size ratio
BL DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Tool-less blade change system enables fast, one-handed blade changes
Soft no-load rotation function can be enabled or disabled at the operator’s preference
Variable speed dial enables operator to adjust cutting speed based on materials or application
Lock-on button enables easy continuous operation
Push button lock-off switch prevents accidental start-up for increased operator safety
Electric brake stops blade immediately for added safety
Independent dust nozzle doesn’t require removal when bevel cutting and adapts quickly and easily to Makita Dust Extractors
Blower feature keeps cutting line free of saw dust
LED job light illuminates cutting area
3 orbital and straight-cutting options enable operator to obtain a more aggressive cut
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Where to buy

Items Included:Tool Only. Batteries and Charger Sold Separately. Jig Saw Blades (1 Ea. 792529-7), Hex Wrench 3 (783201-2), Cover Plate (457867-1)

783201-2

457867-1

Images shown may not represent the full listing or the true size of included items.

Brushless (BL) DC motor with high power to weight and size ratio
BL DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Tool-less blade change system enables fast, one-handed blade changes
Soft no-load rotation function can be enabled or disabled at the operator’s preference
Variable speed dial enables operator to adjust cutting speed based on materials or application
Lock-on button enables easy continuous operation
Push button lock-off switch prevents accidental start-up for increased operator safety
Electric brake stops blade immediately for added safety
Independent dust nozzle doesn’t require removal when bevel cutting and adapts quickly and easily to Makita Dust Extractors
Blower feature keeps cutting line free of saw dust
LED job light illuminates cutting area
3 orbital and straight-cutting options enable operator to obtain a more aggressive cut
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Jig Saw Blades (1 Ea. 792529-7), Hex Wrench 3 (783201-2), Cover Plate (457867-1)

Shipping Dimensions (Length x Width x Height) & Weight : 10.47 In. X 3.35 In. X 8.03 In. Weight : 4.23 Lb.

Specifications

Battery Capacities	12V CXT
Max. Cutting Depth:
Steel	3/8" (10 mm)
Wood	3-1/2" (90 mm)
Aluminum	13/16" (20 mm)
Stroke Per Minute	800 - 3,000 SPM
Length of Stroke	7/8" (23 mm)
Vibration Level	11.5 m/s²
Noise Level	85 dB(A)
Overall Length	9-3/8" (237 mm)
Net Weight	3.6 lbs (1.6 kg)
