Home / Tool / / / DGA701Z

36V X2 Brushless Technology

(Tool only)

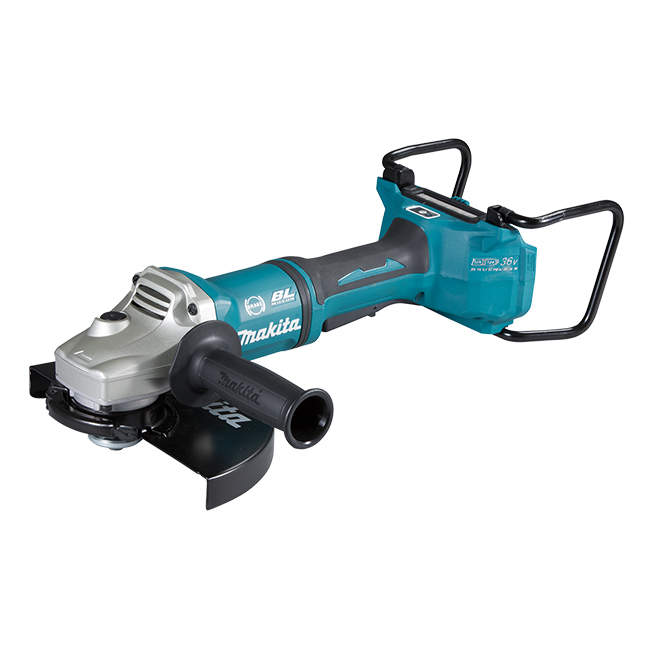

DGA701Z

7" Cordless Angle Grinder with Brushless Motor & AWS

Auto-Start Wireless System (AWS) Technology Features Wireless Dust Collection Technology!

Two-Stage Safety Paddle Switch, Electric Brake

LXT Technology LXT Technology Active Feedback technology LXT Technology AWS Technology ADT 18Vx2
  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Automatic torque Drive Technology (ADT) adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electric brake stops blade immediately for maximum operator safety
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life, and overall battery life
  • Two-stage safety paddle switch prevents switch from being accidentally pulled
  • Battery guard protects batteries from shocks, (e.g. fall damage, bumps, etc.)
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Tool Only. Batteries and Charger Sold Separately. Toolless Wheel Cover (123542-8), Side Handle (143486-6), Lock Nut Wrench 28 (782412-6), Inner Flange (224500-8), Lock Nut 5/8"-45 (224486-6)

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Automatic torque Drive Technology (ADT) adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electric brake stops blade immediately for maximum operator safety
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life, and overall battery life
  • Two-stage safety paddle switch prevents switch from being accidentally pulled
  • Battery guard protects batteries from shocks, (e.g. fall damage, bumps, etc.)
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Toolless Wheel Cover (123542-8), Side Handle (143486-6), Lock Nut Wrench 28 (782412-6), Inner Flange (224500-8), Lock Nut 5/8"-45 (224486-6)

Shipping Dimensions (Length x Width x Height) & Weight : 21.81 In. X 10.55 In. X 7.28 In. Weight : 13.82 Lb.

Specifications

Battery Capacities Two 18V LXT
Grinding Wheel 7" (180 mm)
No Load Speed 7,800 RPM
Arbor Size 5/8" - 11 UNC
Vibration Level 6.5 m/s2
Noise Level 88 dB(A)
Overall Length 19-5/8" (499 mm)
Net Weight 8.8 lbs (4.0 kg)
