LXT Technology

(Tool + Battery + Charger)


DTD152SYX5

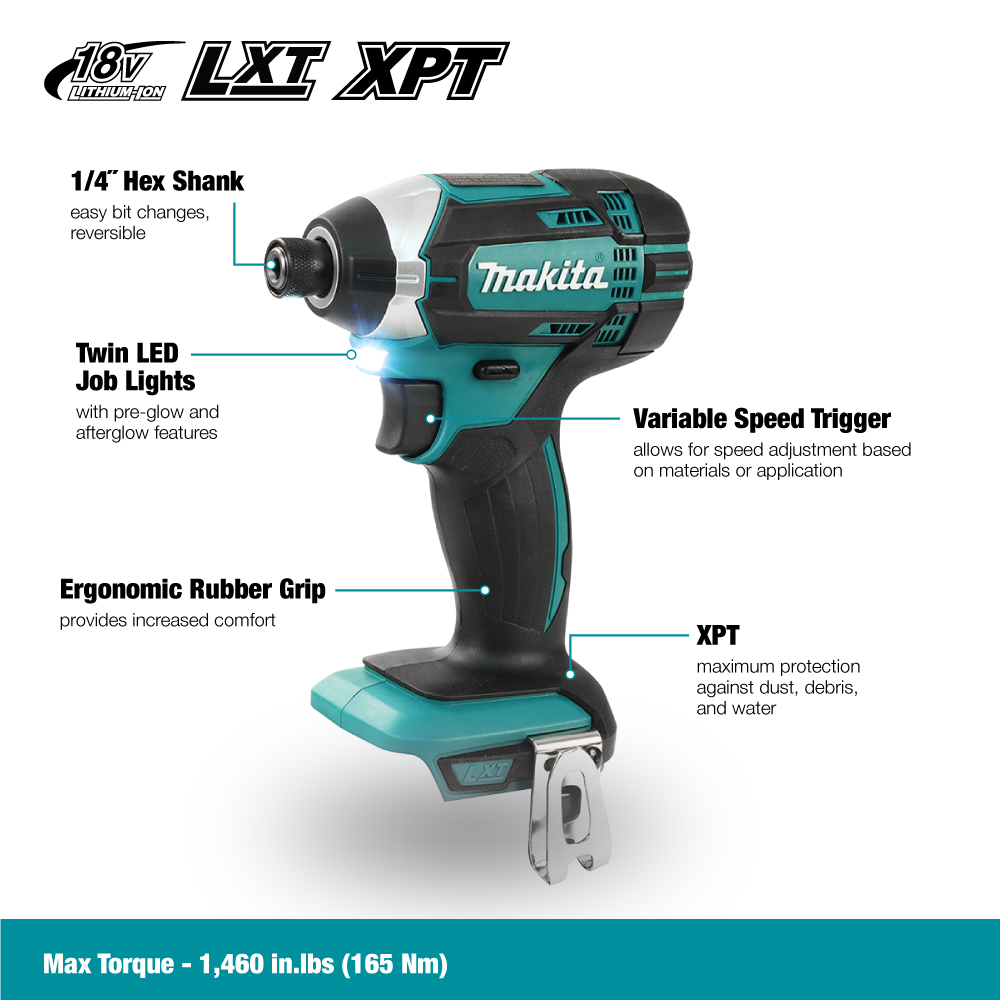

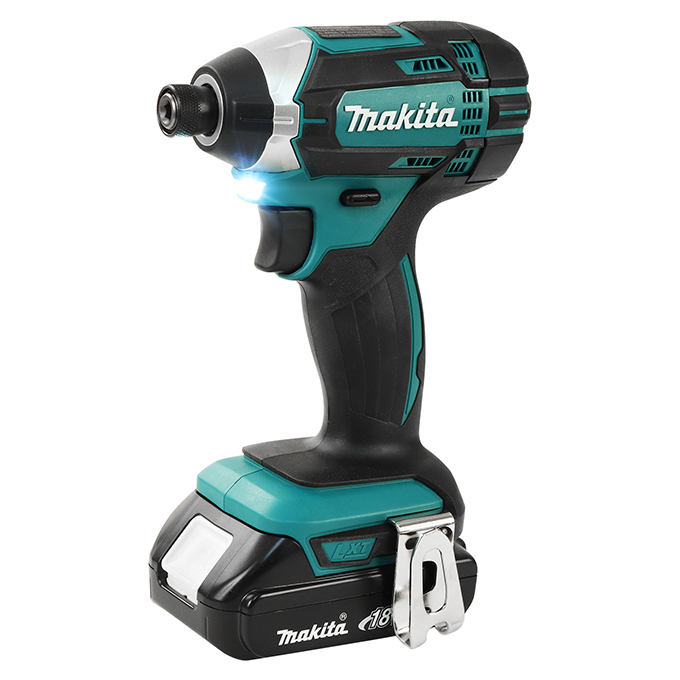

1/4" Cordless Impact Driver

Ultra-Compact and Lightweight Design with Overall Length of Just 5-3/8"

Variable Speed, Reversible

LXT Technology LXT Technology 18V Compact Battery
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • NEW Battery Protection System provides Over-Discharge, Temperature and Circuit Protection for enhanced performance, battery cycle life and overall battery life
  • Increased max. torque of 1,460 in. lbs.

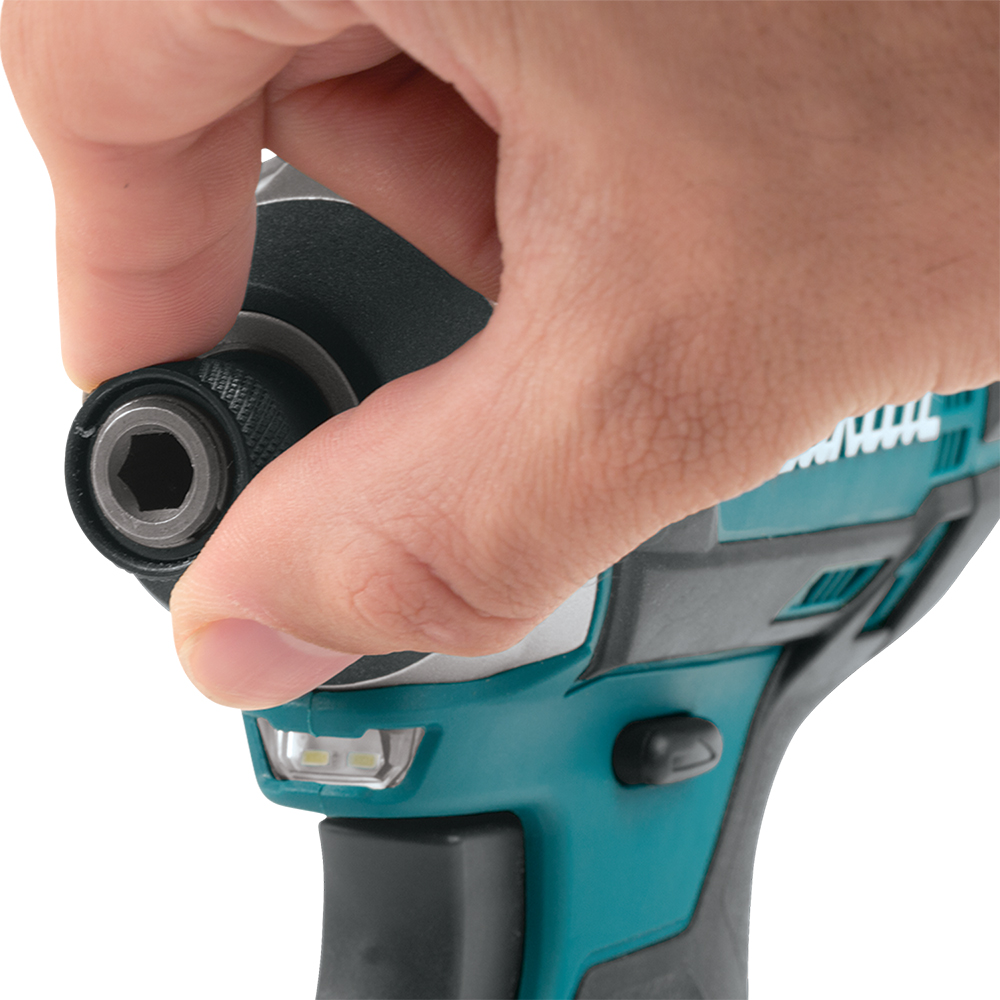

  • One-touch bit holder enables quick and easy bit installation
  • Twin LED lights with pre-glow and after-glow functions
  • Improved ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

Items Included:18V (Compact) Li-Ion Battery BL1815N (196235-0), Standard Charger (DC18SD), Battery Cover (450128-8), Hook (346449-3)

  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • NEW Battery Protection System provides Over-Discharge, Temperature and Circuit Protection for enhanced performance, battery cycle life and overall battery life
  • Increased max. torque of 1,460 in. lbs.
  • One-touch bit holder enables quick and easy bit installation
  • Twin LED lights with pre-glow and after-glow functions
  • Improved ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

Items Included: 18V (Compact) Li-Ion Battery BL1815N (196235-0), Standard Charger (DC18SD), Battery Cover (450128-8), Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 6.42 In. X 10.24 In. X 7.01 In. Weight : 5.47 Lb.

Specifications

Battery Capacities: 18V LXT
Hex Shank 1/4"
No Load Speed 0 - 2,900 RPM
Impacts Per Minute 0 - 3,500 IPM
Maximum Torque   1,460 in.lbs (165 Nm)
Vibration Level 10.5 m/s²
Noise Level 93 dB(A)
Overall Length 5-3/8" (137 mm)
Net Weight  2.8 lbs (1.3 kg)
