UC004GM101

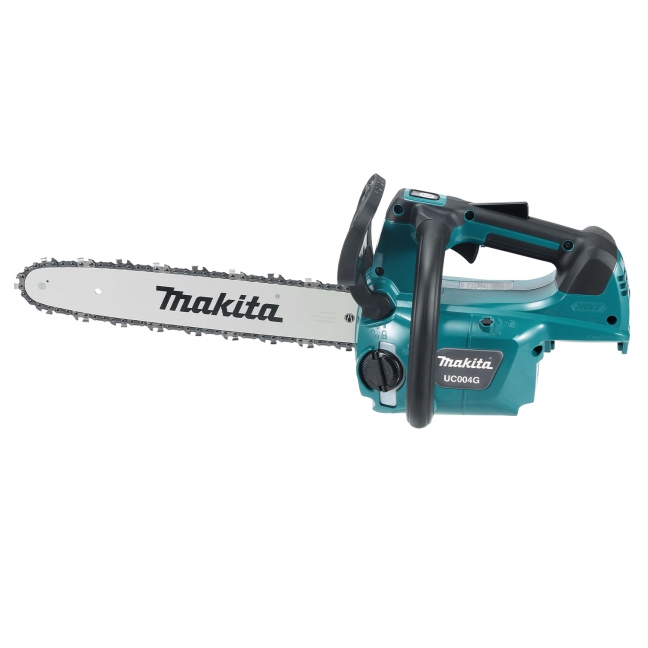

40Vmax XGT Brushless 14" Top Handle Chainsaw, 4.0Ah x1Kit

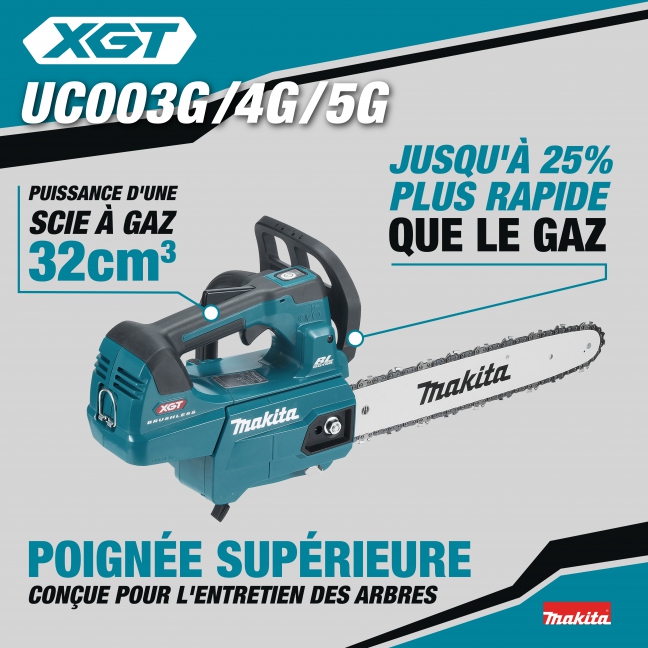

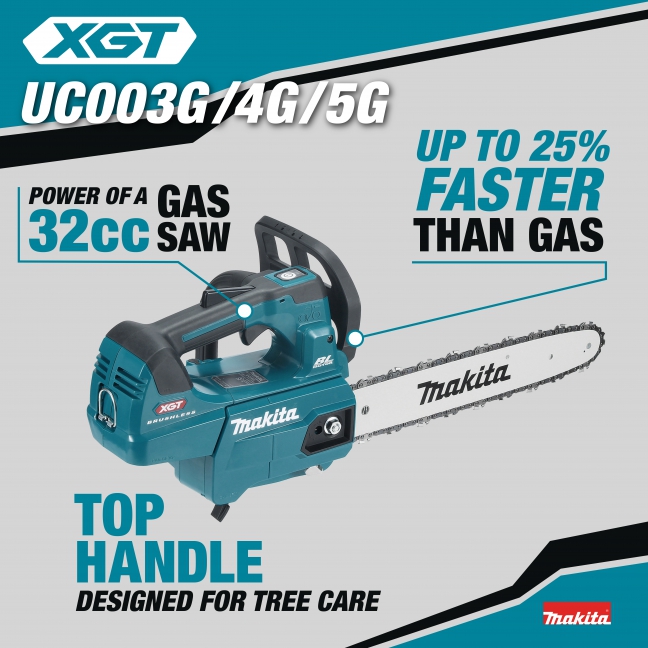

Fast, Variable Speed (0-4,880 Feet Per Minute). Power equivalent to a 32cc Gasoline Chainsaw

Designed with the professional arborist in mind that require a compact and powerful saw

XGT Technology LXT Technology LXT Technology

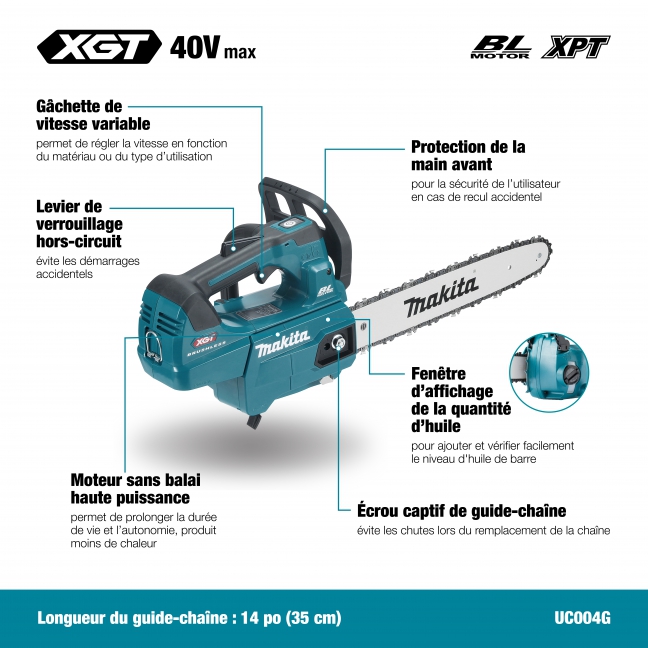

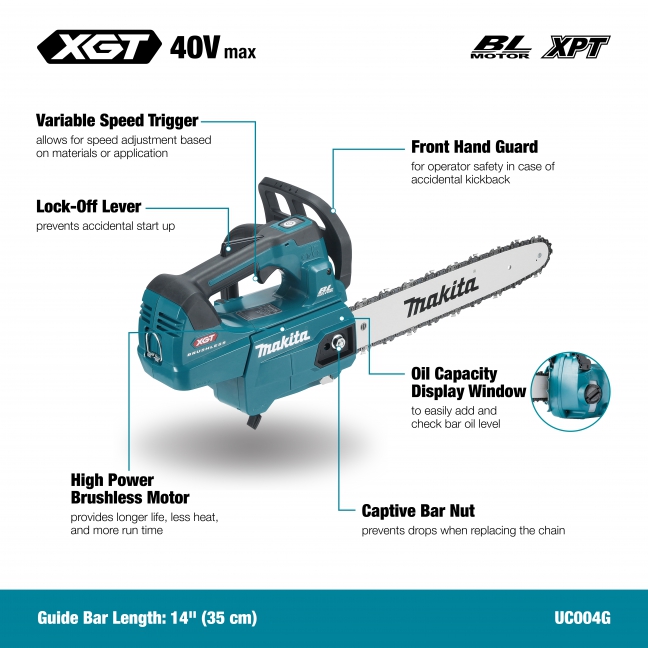

  • 1,400 W Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged cutting applications
  • Features eXtreme Protection Technology (XPT) offering maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Low noise level at only 100 dB(A) with zero emissions for operator comfort and reduced environmental impact
  • Captive bar nuts prevent loss of nut when removing sprocket cover to replace guide bar or saw chain
  • Automatic chain oiler maintains optimal bar/chain lubrication during operation with no adjustments required

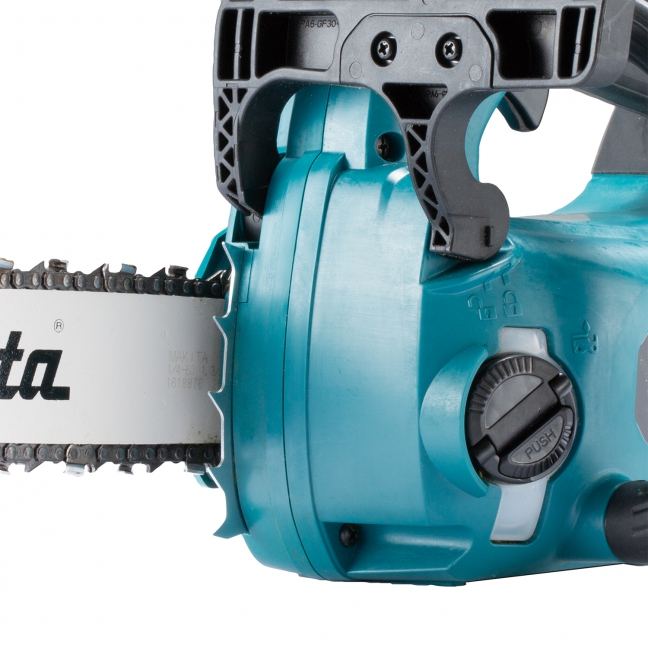

  • Chain oil view window enables operator to easily check oil level

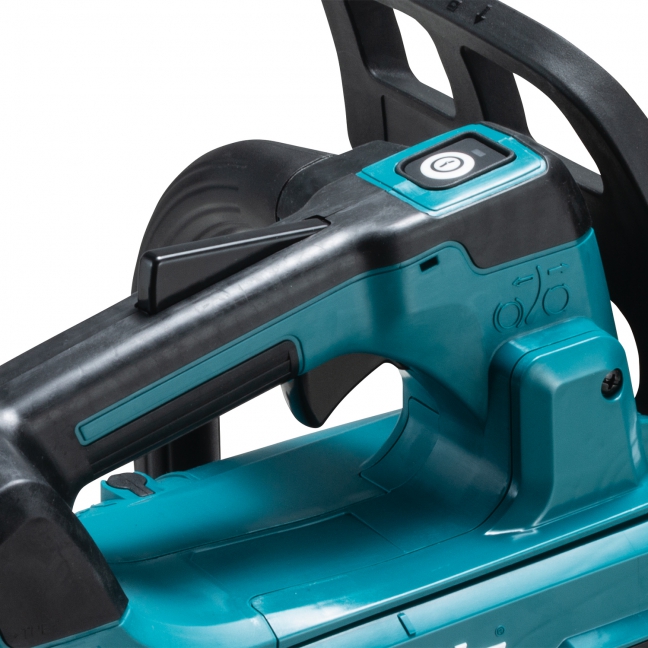

  • Push-button on/off switch with auto power-off function for extended battery life
  • Lock-off button prevents accidental start up for maximum operator safety
  • Variable speed trigger switch (0 - 4,880 FPM) allows operator to adjust cutting speed
  • Anti kickback function using Inertia chain brake provides maximum operator protection if kickback occurs
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

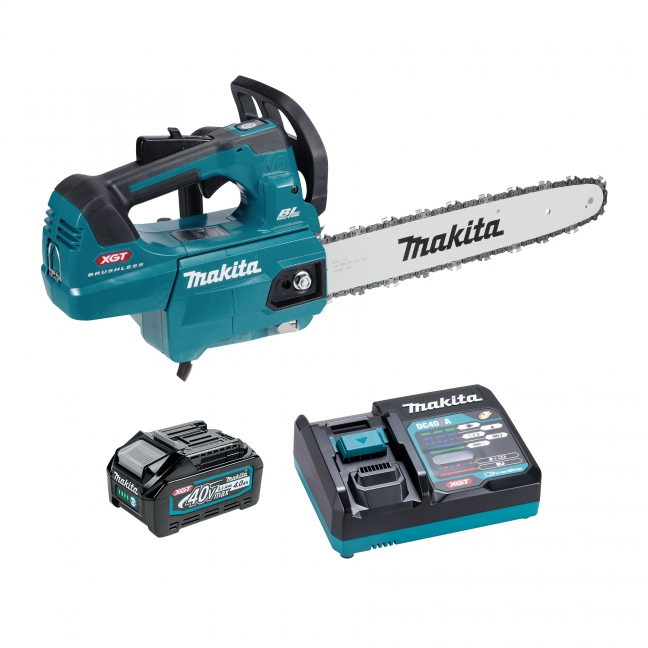

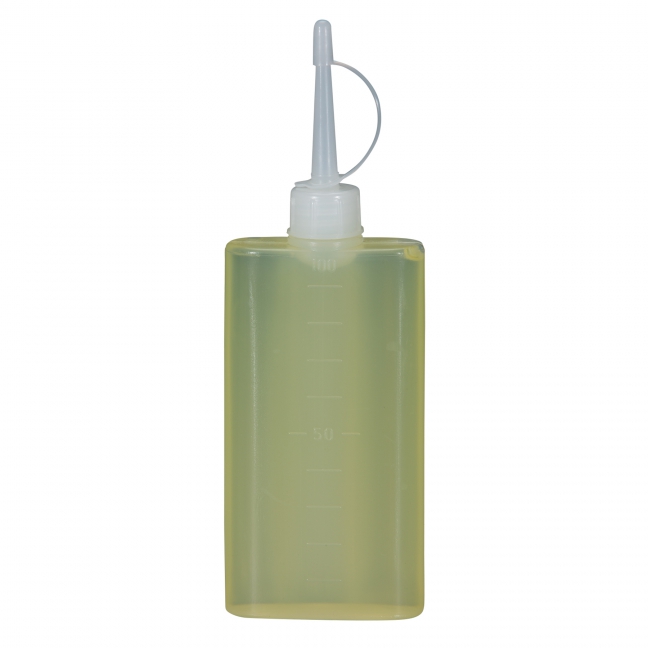

Items Included:40Vmax XGT (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), Battery Cover (412393-7), 14" Guide Bar (191G16-9), 14" Chain (191H02-6), Chain Cover (419288-5), Spike Bumper (346809-9), Wrench 13-16 (782023-7), Oil Supply (182229-1)

  • 1,400 W Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged cutting applications
  • Features eXtreme Protection Technology (XPT) offering maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Low noise level at only 100 dB(A) with zero emissions for operator comfort and reduced environmental impact
  • Captive bar nuts prevent loss of nut when removing sprocket cover to replace guide bar or saw chain
  • Automatic chain oiler maintains optimal bar/chain lubrication during operation with no adjustments required
  • Chain oil view window enables operator to easily check oil level
  • Push-button on/off switch with auto power-off function for extended battery life
  • Lock-off button prevents accidental start up for maximum operator safety
  • Variable speed trigger switch (0 - 4,880 FPM) allows operator to adjust cutting speed
  • Anti kickback function using Inertia chain brake provides maximum operator protection if kickback occurs
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 40Vmax XGT (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), Battery Cover (412393-7), 14" Guide Bar (191G16-9), 14" Chain (191H02-6), Chain Cover (419288-5), Spike Bumper (346809-9), Wrench 13-16 (782023-7), Oil Supply (182229-1)

Shipping Dimensions (Length x Width x Height) & Weight : 17.56 In. X 12.01 In. X 10.55 In. Weight : 16.53 Lb.

Specifications

Battery Capacities 40Vmax XGT
Guide Bar Length  14" (350 mm)

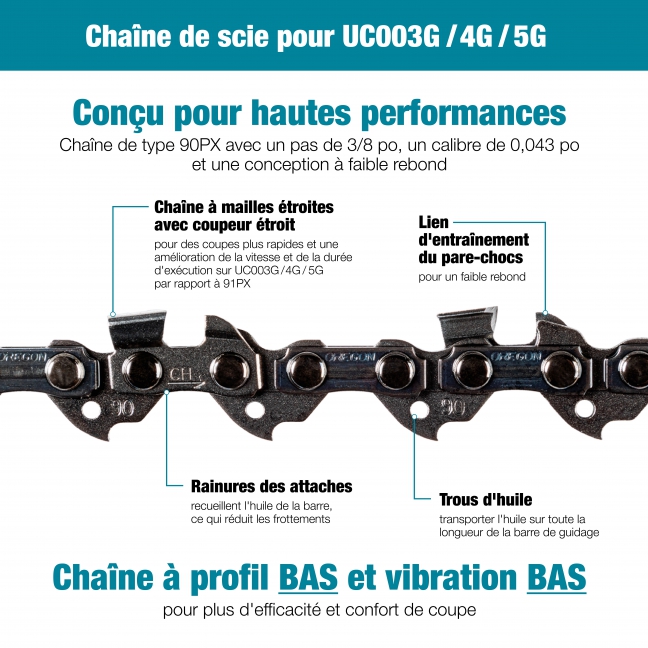

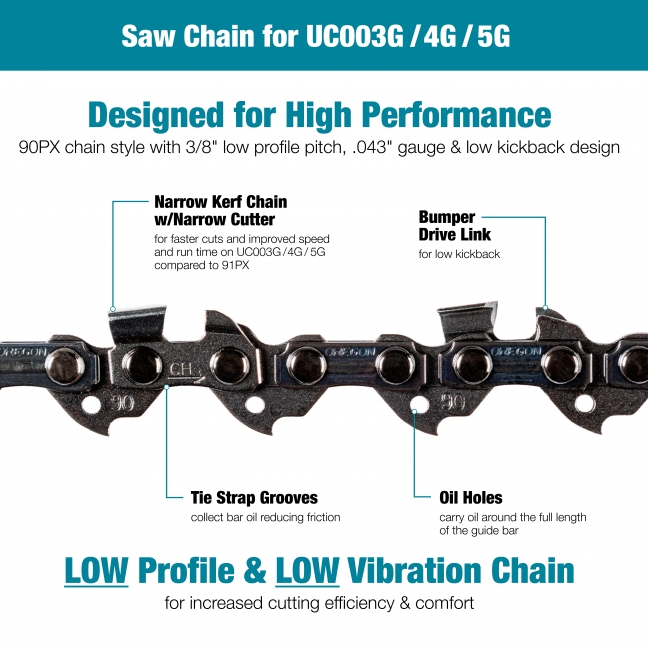

Chain Pitch / Gauge 3/8" / 0.043"
Chain Speed 0 - 4,880 FPM (0-1,490 m/min)
Vibration Level 5.0 m/s²
Noise Level  90 dB(A)
Overall Length  10-1/2" (266 mm)
Net Weight     9.8 lbs (4.4 kg)

User Manual: UC003G UC004G UC005G - EN FR SP.pdf

Parts Breakdown: UC004GM101, UC004GZ - AUG2023.pdf
