18V LXT Brushless Cordless 5" X-Lock Angle Grinder w/AFT & XPT (Tool Only)

X-Lock Technology!

Slide Switch, Soft Start

X-Lock mechanism enables installation and removal of discs without a wrench and prevents over or under tightening of abrasive wheels
New toolless wheel cover allows fast and easy installation and adjustment
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
Brushless DC motor with high power to weight and size ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
Soft start feature gradually increases speed to eliminate start up shock
Electronic current limiter protects motor from accidental overload
Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life, and overall battery life
Integrated dust screens act as additional protection against dust, dirt and debris
Ergonomic soft rubber grip design for vibration absorption and comfortable operation
X-lock abrasives may be used with other 5” arbor angle grinders with 7/8” arbor

Where to buy

Items Included:Batteries and Charger Sold Separately. 5" Depressed Center Wheel (E-00468), 5" Cutting Wheel (E-00474), Wheel Cover (140T26-1), Cut-Off Wheel Cover (162708-5), Side Handle (158237-4)

E-00468

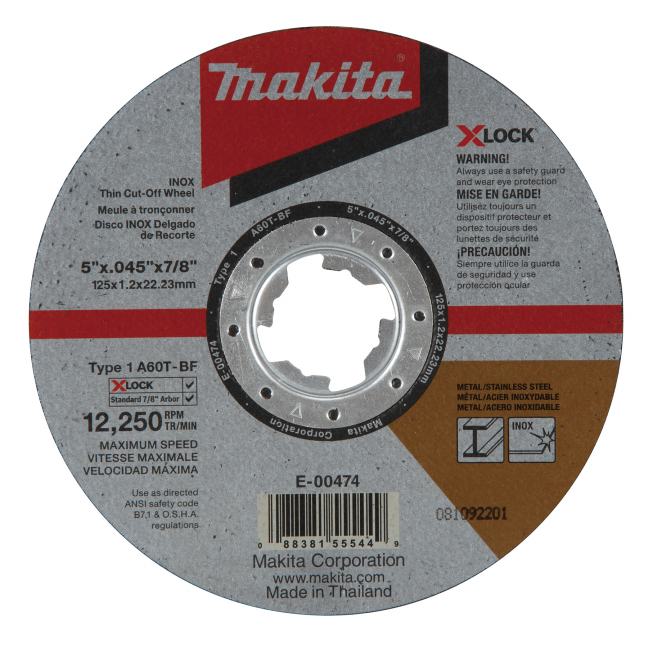

E-00474

158237-4

Images shown may not represent the full listing or the true size of included items.

X-Lock mechanism enables installation and removal of discs without a wrench and prevents over or under tightening of abrasive wheels
New toolless wheel cover allows fast and easy installation and adjustment
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
Brushless DC motor with high power to weight and size ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
Soft start feature gradually increases speed to eliminate start up shock
Electronic current limiter protects motor from accidental overload
Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life, and overall battery life
Integrated dust screens act as additional protection against dust, dirt and debris
Ergonomic soft rubber grip design for vibration absorption and comfortable operation
X-lock abrasives may be used with other 5” arbor angle grinders with 7/8” arbor

Items Included: Batteries and Charger Sold Separately. 5" Depressed Center Wheel (E-00468), 5" Cutting Wheel (E-00474), Wheel Cover (140T26-1), Cut-Off Wheel Cover (162708-5), Side Handle (158237-4)

Shipping Dimensions (Length x Width x Height) & Weight : 14.37 In. X 8.74 In. X 5.75 In. Weight : 8.27 Lb.

Specifications

Battery Capacities	18V LXT
Grinding Wheel	5" (125 mm)
No Load Speed	8,500 RPM
Arbor Size	7/8" (22.23 mm)
Thread	X-Lock
Vibration Level	5.0 m/s²
Noise Level	80 dB(A)
Overall Length	14-3/4" (375 mm)
Net Weight	4.7 lbs (2.1 kg)
