LXT Technology

(Tool only)


DBO480ZX1

18V LXT 1/4 Finishing Sander, Tool Only

Makita's FIRST Cordless 1/4 Sheet Finishing Sander!

Accepts 6-hole 4-1/2" x 4" hook & loop OR 5-1/2" x 4-1/2" clamp style 1/4 sheet abrasive sandpaper

2-Speed Range (Low / High)

LXT Technology
  • Accepts 6-hole 4-1/2" x 4" hook & loop OR 5-1/2" x 4-1/2" clamp style 1/4 sheet abrasive sandpaper for through-the-pad dust extraction
  • 2-speed range allows operator to adjust speed based on materials or sanding application
  • Push button ON/OFF switch for easy operator control
  • Soft rubber grip design for vibration absorption and comfortable operation

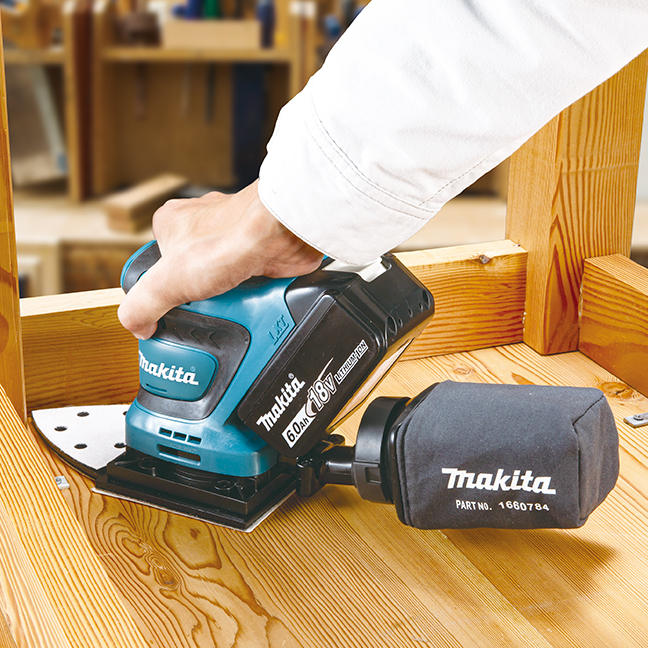

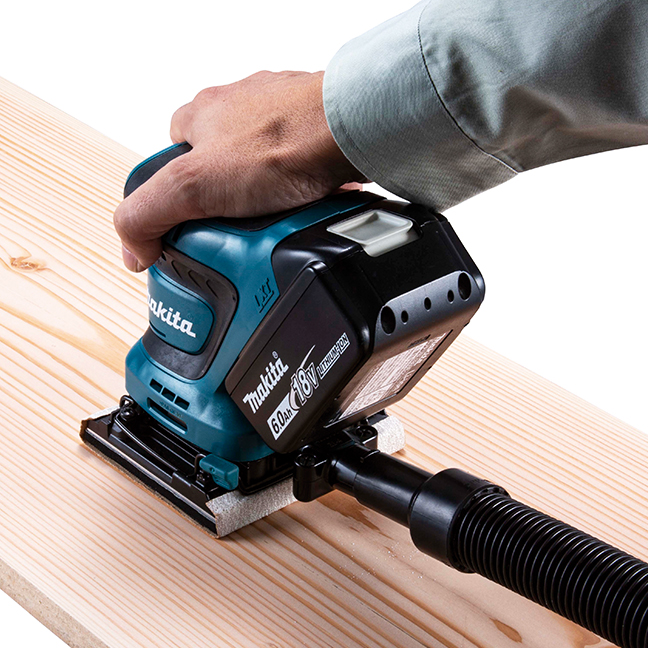

  • Use with Makita cordless backpack or canister dust extractors for effective dust extraction at the point of creation

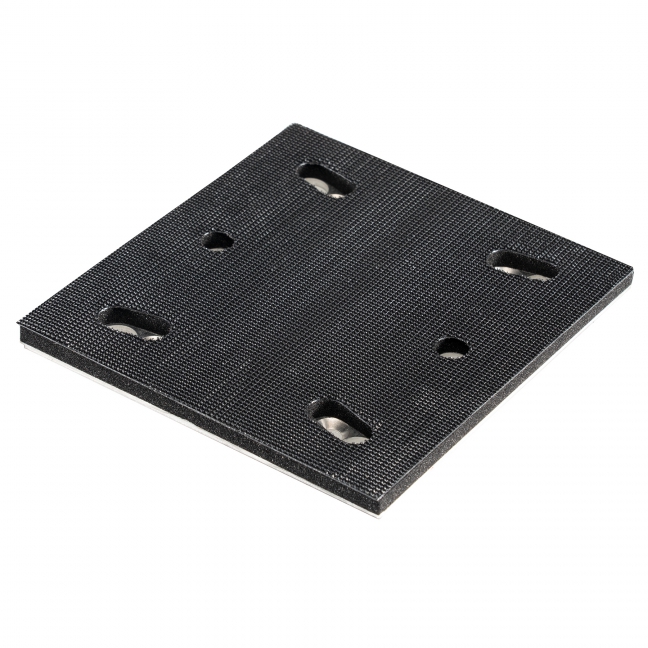

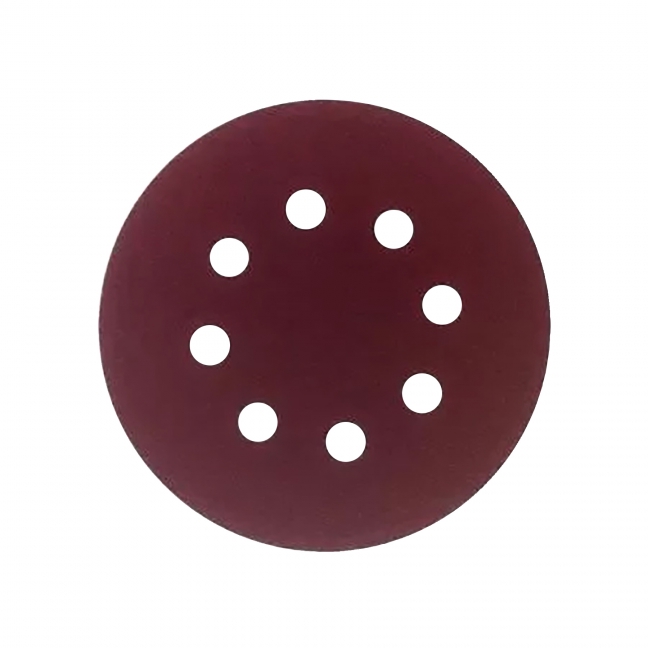

Items Included:Batteries and Charger Sold Separately. Two Abrasive Paper Set (192352-4), Dust Bag Assembly (135222-4), Punch Plate (450066-4), Pad (191Y24-8)

  • Accepts 6-hole 4-1/2" x 4" hook & loop OR 5-1/2" x 4-1/2" clamp style 1/4 sheet abrasive sandpaper for through-the-pad dust extraction
  • 2-speed range allows operator to adjust speed based on materials or sanding application
  • Push button ON/OFF switch for easy operator control
  • Soft rubber grip design for vibration absorption and comfortable operation
  • Use with Makita cordless backpack or canister dust extractors for effective dust extraction at the point of creation

Items Included: Batteries and Charger Sold Separately. Two Abrasive Paper Set (192352-4), Dust Bag Assembly (135222-4), Punch Plate (450066-4), Pad (191Y24-8)

Shipping Dimensions (Length x Width x Height) & Weight : 8.78 In. X 5.55 In. X 9.09 In. Weight : 3.59 Lb.

Specifications

Battery Capacities 18V LXT
Pad Size  4-3/8 x 4" (112 mm x 102 mm)
Abrasive Paper Size  4-1/2" x 4" (114 mm x 102 mm)
Orbits Per Minute 11,000 / 14,000 OPM
Orbit Diameter 1/16" (ø1.5 mm)
Vibration Level 2.5 m/s²
Noise Level 75 dB(A)
Overall Length 4-11/16" (119 mm)
Net Weight 2.3 lbs (1.0 kg)

User Manual: DBO480 - EN FR SP.pdf

Parts Breakdown: DBO480RTX1, DBO480ZX1 - SEP2024.pdf
