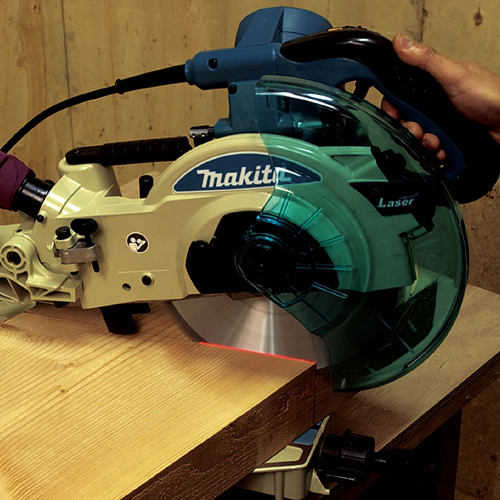

10” Dual Sliding Compound Mitre Saw

Bevels Left and Right, Laser

Features Laser TrackingMode

Two pole linear ball bearing mounted sliding cutting head
Laser can be turned ON or OFF without starting tool
Laser can bemoved to either side of the blade
Electronic speed control for constant speed regardless of load
Mitre cuts 1-47° left and 0 -52°right with positive stops at 15°, 22.5°, 31.6°, 45° left and right and 0°
Adjustable pivot fence for supporting larger stock

Where to buy

Items Included:10”Carbide Tipped Blade 70 tooth (A-93550),SocketWrench (782212-4),Dust Bag (122523-9),2 Ea.Switch Buttons (411478-6),Triangle Rule (762001-3),Vertical Vise (122538-6),HexWrench (783208-8),2 Ea.Holders (322932-4)

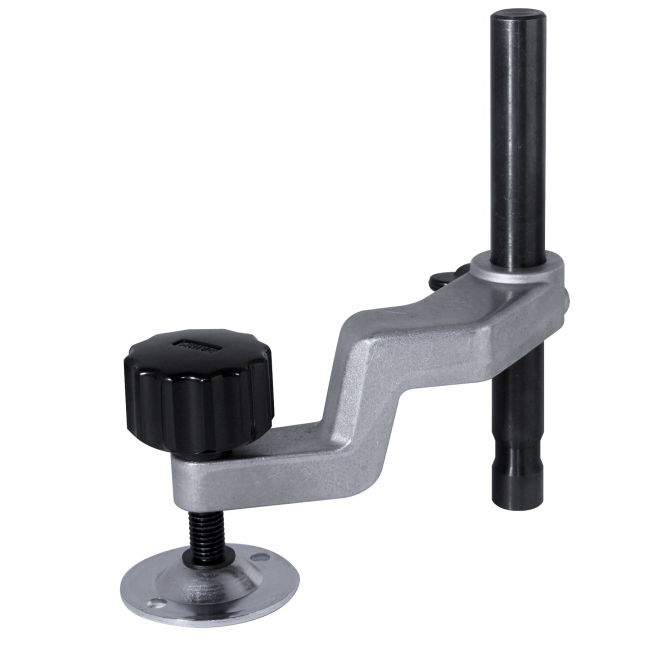

122538-6

783208-8

Images shown may not represent the full listing or the true size of included items.

Features Laser TrackingMode

Two pole linear ball bearing mounted sliding cutting head
Laser can be turned ON or OFF without starting tool
Laser can bemoved to either side of the blade
Electronic speed control for constant speed regardless of load
Mitre cuts 1-47° left and 0 -52°right with positive stops at 15°, 22.5°, 31.6°, 45° left and right and 0°
Adjustable pivot fence for supporting larger stock

Items Included: 10”Carbide Tipped Blade 70 tooth (A-93550),SocketWrench (782212-4),Dust Bag (122523-9),2 Ea.Switch Buttons (411478-6),Triangle Rule (762001-3),Vertical Vise (122538-6),HexWrench (783208-8),2 Ea.Holders (322932-4)

Specifications

Blade diameter	10” (255 mm)
Arbor	5/8” (16 mm)
No load speed	3,700 RPM
AMPS (120 V)	15.0
OverallDim(LxWxH)	28-1/8"(715mm)x20-1/2"(520mm)x25-1/4"(640mm)
Net weight	46.5 lbss (21.1 kg)
Shipping weight	60.0 lbs (27.2 kg)
