Home / Tool / / / DPC7320


DPC7320

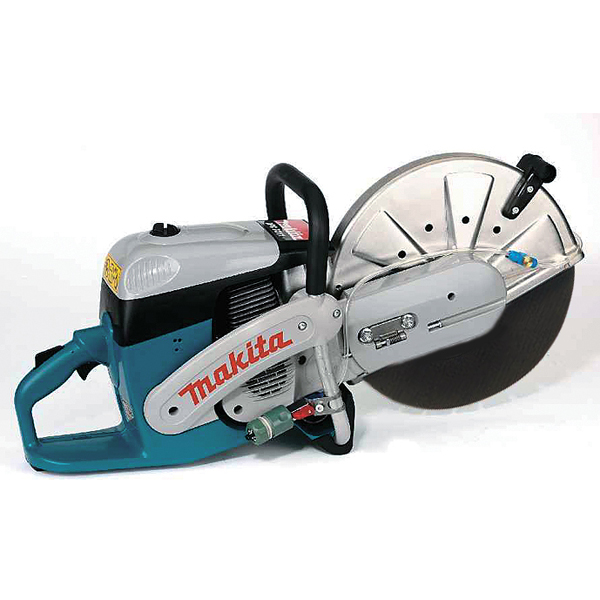

12" Power Cutter (20mm Arbor)

12" Cutting Wheel,Top Mount Decompression Valve Reduces The Start Up Force Required By 70%

Reduced Engine Emission With Catalytic-Converter

  • Advanced 5 stage air filtration system for cleaner operation
  • Large air intake space for increased engine cooling
  • Air inlet ports reduce noise up to 40%
  • Reversible cutting arm can be mounted in the center for flush cutting
  • Electronic ignition with rev limiter
  • Required to use 2 cycle Synthetic Oil

Items Included:12" Cutting Disc F/Stone (20 mm) (966 121 120), Universal Wrench 13/19 (941 719 140), TorxWrench (940 827 000), Screw Driver(944 340 001), Water Attachment Kit (394 365 630)

  • Advanced 5 stage air filtration system for cleaner operation
  • Large air intake space for increased engine cooling
  • Air inlet ports reduce noise up to 40%
  • Reversible cutting arm can be mounted in the center for flush cutting
  • Electronic ignition with rev limiter
  • Required to use 2 cycle Synthetic Oil

Items Included: 12" Cutting Disc F/Stone (20 mm) (966 121 120), Universal Wrench 13/19 (941 719 140), TorxWrench (940 827 000), Screw Driver(944 340 001), Water Attachment Kit (394 365 630)

Shipping Dimensions (Length x Width x Height) & Weight : 26.61 In. X 11.42 In. X 15 In. Weight : 28.66 Lb.

Specifications

Displacement 4.5 cu.in (73 cc)
Max. Power 4.2 kW (5.6 hp)
Fuel / Oil Mixture 50:1
Ignition System Electronic
Fuel Tank Capacity 1.1 L
No Load Speed (Engine) 9,350 RPM
Max. Spindle Speed  4,300 RPM
Arbor 20 mm
Max. Cutting Depth 3-13/16” (97 mm)
Dry Weight 21.4 lbs (9.8 kg)
Shipping Weight 28.7 lbs (13.0 kg)
12

12" - 16" Optimum Series Diamond Blades for Power Cutters & Angle Cutters

Read More

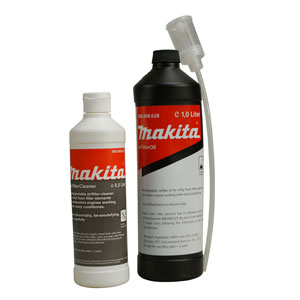

Power Cutter Air Filter Oil & Cleaner
