Home / Tool / OPE / Power Cutters / DCE090ZX1

36V X2 Brushless Technology

(Tool only)


DCE090ZX1

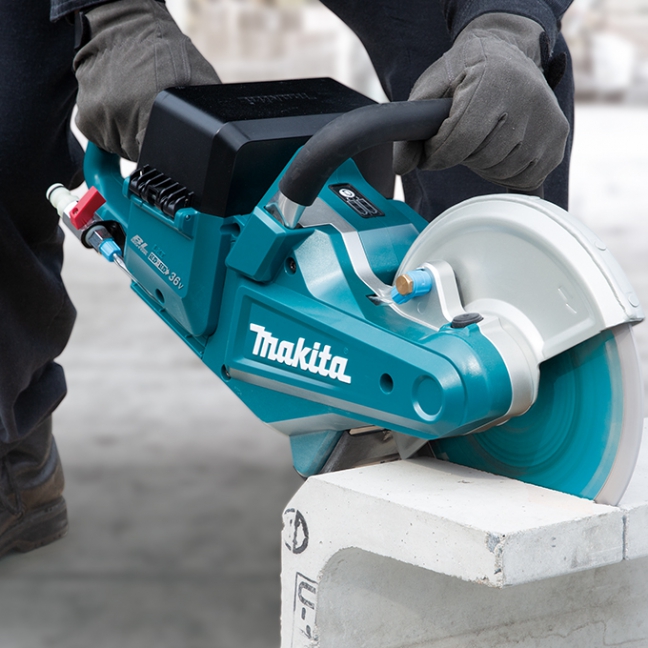

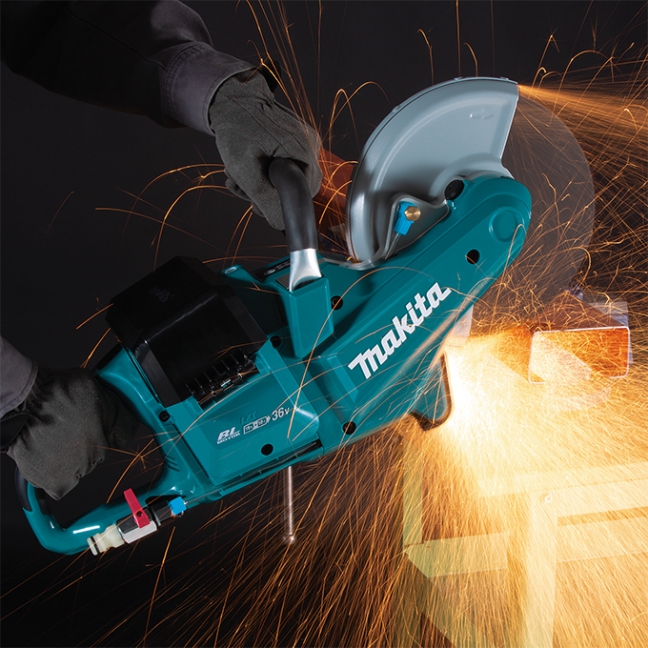

36V(18Vx2 ) LXT Brushless 9" Power Cutter, Tool Only

Deepest Cut Depth In Class! ZERO Emissions - NO Fuel Mixing - LOWER Noise - LOWER Vibration!

3-1/2" Depth Of Cut

Active Feedback Technology (AFT), Soft Start, Electric Brake

LXT Technology LXT Technology Active Feedback technology LXT Technology ADT 18Vx2

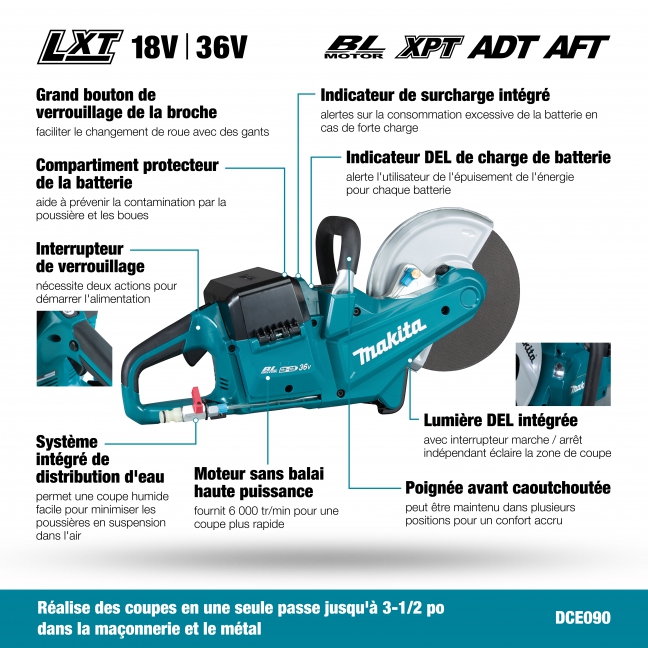

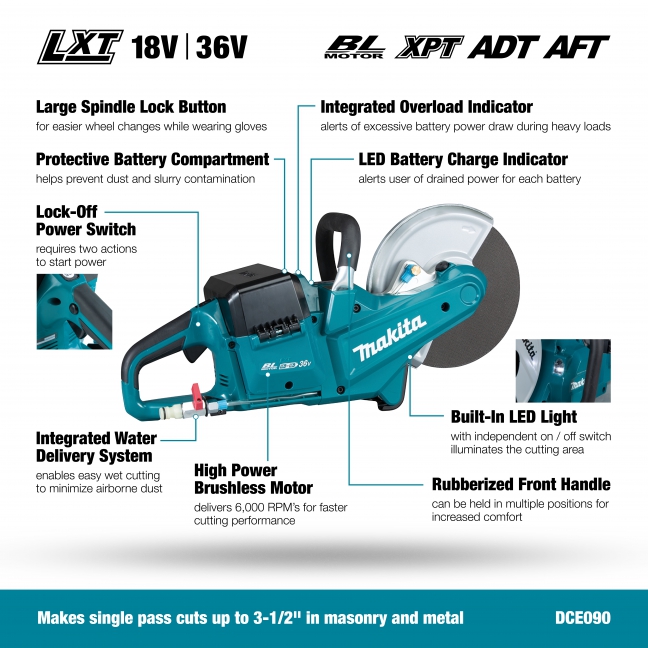

  • Brushless (BL) DC motor with high power to weight and size ratio generates less heat buildup and is ideal for heavy-duty applications
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • LED job light illuminates cutting area
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electronic current limiter prevents motor burnout caused by overloading
  • Electric brake stops blade 2-4 seconds after the trigger is released for increased operator safety
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery cover protects batteries from water damage in wet cutting applications
  • Lock-off button prevents accidental startup

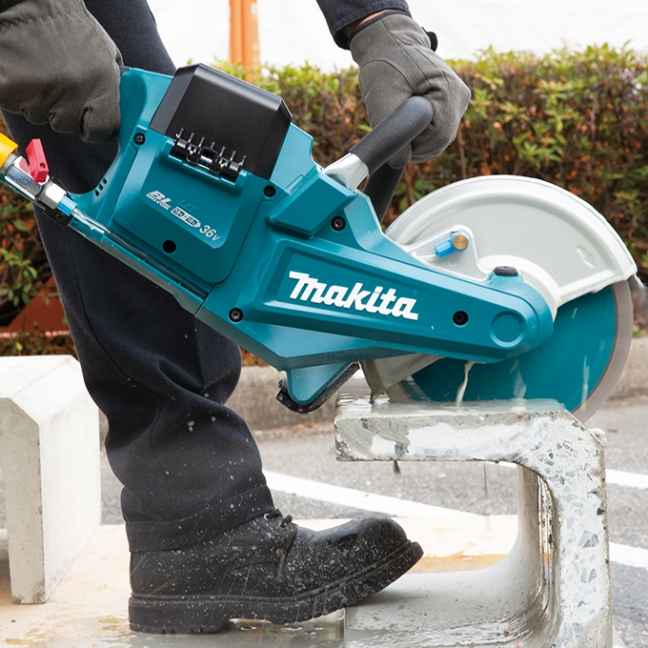

  • Water supply kit enables easy wet cutting to minimize airborne dust
  • Ergonomic soft rubber drip for vibration absorption and comfortable operation

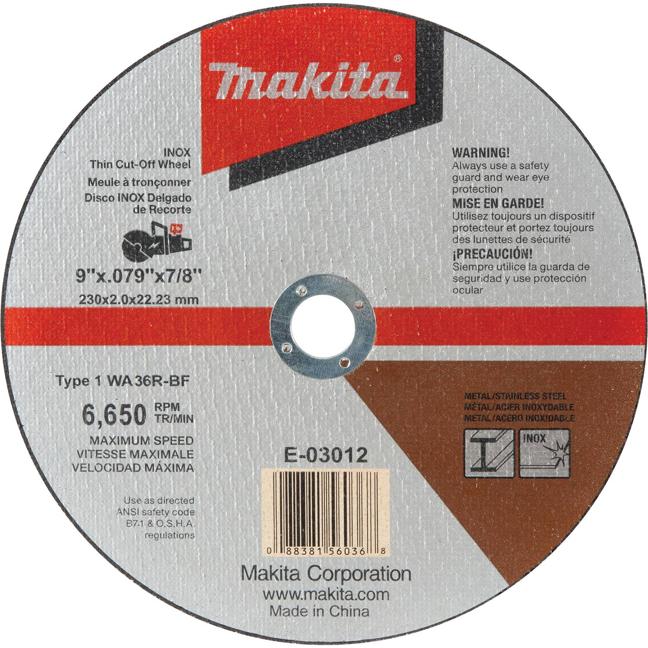

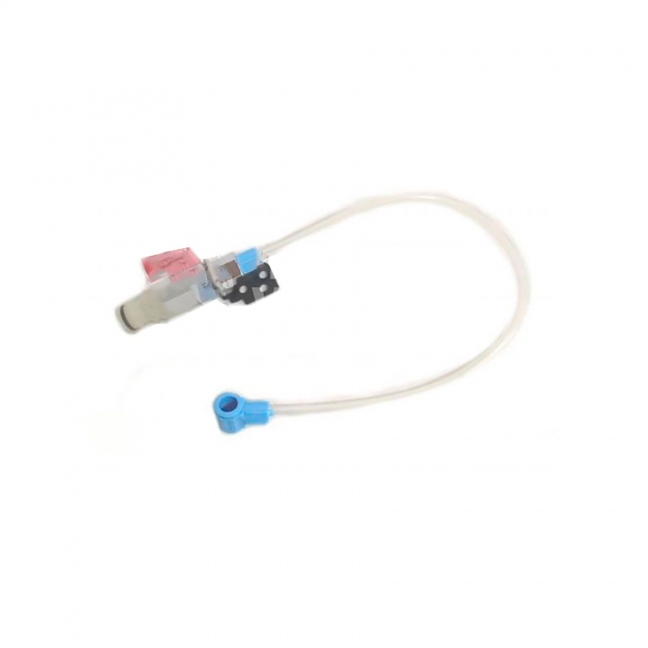

Items Included:Tool Only. Batteries and Charger Sold Separately. 9" Abrasive Wheel (E-03012), Coupling Sleeve (123120-4), Hose Assembly (127491-1), Wrench 13-16 (941 716 131), Hex Wrench 4 (783202-0)

  • Brushless (BL) DC motor with high power to weight and size ratio generates less heat buildup and is ideal for heavy-duty applications
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • LED job light illuminates cutting area
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electronic current limiter prevents motor burnout caused by overloading
  • Electric brake stops blade 2-4 seconds after the trigger is released for increased operator safety
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery cover protects batteries from water damage in wet cutting applications
  • Lock-off button prevents accidental startup
  • Water supply kit enables easy wet cutting to minimize airborne dust
  • Ergonomic soft rubber drip for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. 9" Abrasive Wheel (E-03012), Coupling Sleeve (123120-4), Hose Assembly (127491-1), Wrench 13-16 (941 716 131), Hex Wrench 4 (783202-0)

Shipping Dimensions (Length x Width x Height) & Weight : 12.13 In. X 26.02 In. X 10.67 In. Weight : 15.83 Lb.

Specifications

Battery Capacities Two 18V LXT
Blade Diameter 9” (230 mm)
Arbor 7/8" (22.23 mm)
Max. Cutting Depth 3-1/2" (88 mm)
No Load Speed 6,600 RPM
Vibration Level 5.9 m/s²
Noise Level 103 dB(A)
Overall Length 21-3/4" (554 mm)
Net Weight 10.9 lbs (4.9 kg)
